AP20P VALVES

Metal seated ball valve with welding ends or threaded ends.

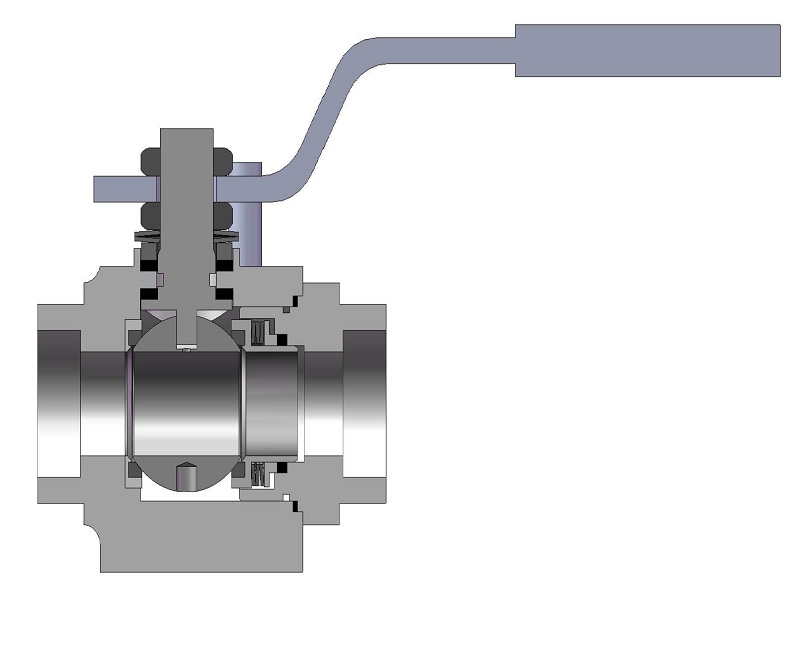

AP20P valves is characterized by two­-piece screwed construction and floating ball. Live Loaded Design stem packings.

AP20P valves are designed to be used in a wide range of applications such as the interception of gas or termal oil and for temperatures from -50°C to +400°C.
The AP model stands out for its well-known two-piece threaded construction, threaded or welded connections and it is also available with integral non-welded nipples.

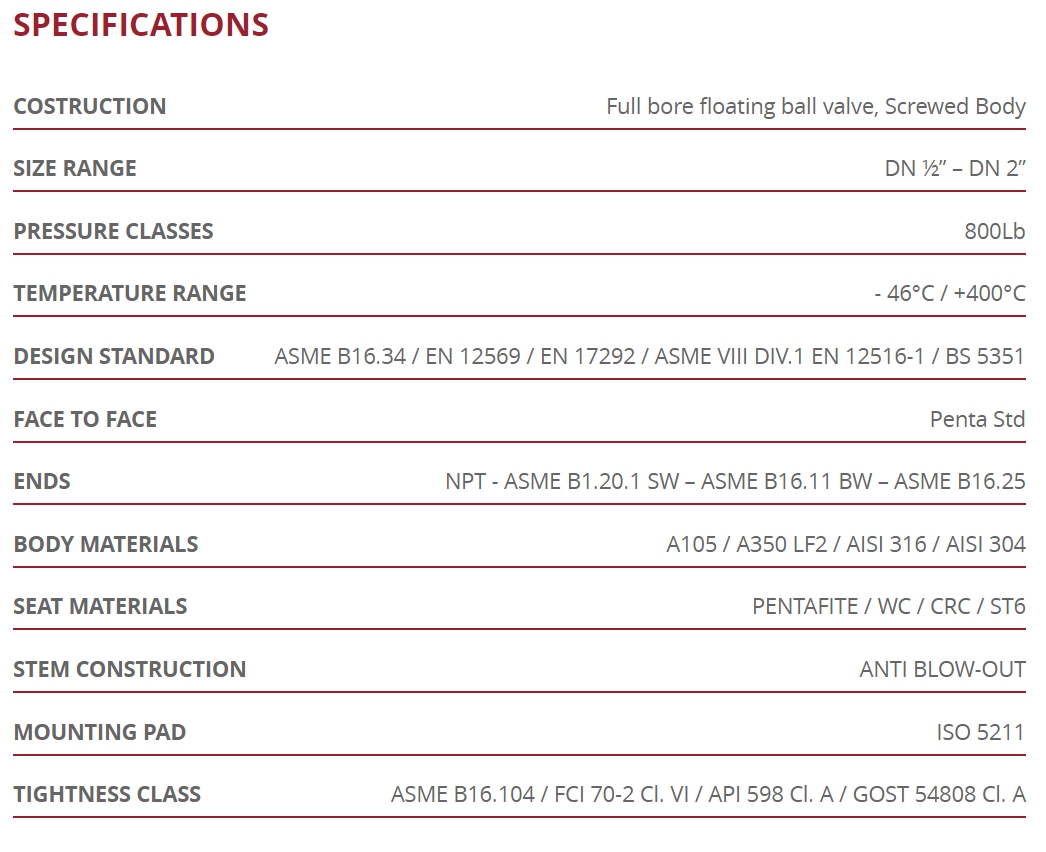

SPECIFICATIONS

CONSTRUCTION : Full bore floating ball valve, Screwed Body

SIZE RANGE : DN 1/2″ – DN 2″

PRESSURE CLASSES : 800Lb

TEMPERATURE RANGE : -46°C / +400°C

DESIGN STANDARD : ASME B16.34 / EN 12569 / EN 17292 / ASME VIII DIV.1 EN 12516-1 / BS 5351

FACE TO FACE : Penta Std

ENDS : NPT – ASME B1.20.1 SW – ASME B16.11 BW – ASME B16.25

BODY MATERIALS : A105 / A350 LF2 / AISI 316 / AISI 304

SEAT MATERIALS : PENTAFITE / WC / CRC / ST6

STEM CONSTRUCTION : ANTI BLOW-OUT

MOUNTING PAD : ISO 5211

TIGHTNESS CLASS : ASME B16.104 / FCI 70-2 CI. VI / API 598 CI. A / GOST 54808 CI. A
